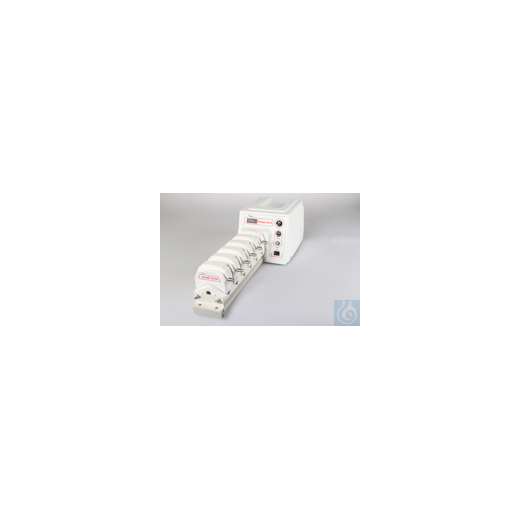

Peristaltic pump iPump6S-W, drive for up to 8 channels variable up to 600 RPM, 1095,17 CHF

Cookiename	Beispielinhalt	Ablaufzeit
_ga_*	deleted	730 Tage
_ga	GA1.1.8643343795.1726666186	730 Tage

The iPump6S-W peristaltic pump is designed as a high force pump for use with multiple channels and large hose diameters with varying pumping rates. The drive can be combined with different pump heads for up to 8 channels. The motor can be adjusted in the range of 0.1 up to 600 RPM speed. Depending on the pump head and tubing, flow rates of 0.0001-6061 ml/min are possible with this pump (maximum flow rate in combination with head kz25a). In addition to the pump speed, the running time of the pump can also be adjusted. The setpoints can be adjusted via a membrane keypad, via the RS485 interface or via the analogue interface. The hose line can be filled quickly via a prime button. The current number of revolutions is shown in an easy-to-read LED display. The last set parameters are saved by the pump even when it is switched off. Flow rate: 0.0001- 6061 ml/min Speed: 0.1-600 RPM Accuracy: 1 RPM Pump direction: Forward, Reverse Pump heads: 1,2,4,6 or 8 * YZ15A, 1,2,4* KZ25A Timing: 0.1s-99 h Display: 3-digit speed display Interface: RS-485 External signals: Start/stop, speed 0-5V, 0-10V, 4-20 mA, 0-10kHz Ambient temperature: 0-40°C Humidity: Peristaltic pump iPump6S-W, drive for up to 8 channels variable up to 600 rpm
