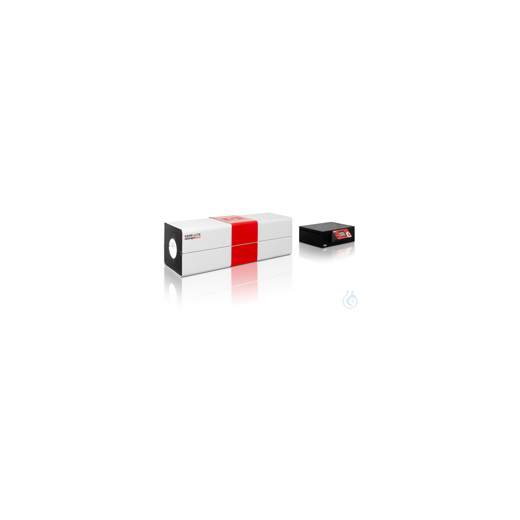

TF3 12/125/1000 CC-T1 Touchscreen controller (3 zones) Horizontal three-zone pipe, 14545,85 CHF

Cookiename	Beispielinhalt	Ablaufzeit
_ga_*	deleted	730 Tage
_ga	GA1.1.8643343795.1726666186	730 Tage

Horizontal three-zone tube furnace up to 1200°C Resistance wire heating elements embedded in high-quality vacuum-formed fibre insulation 1200 °C maximum temperature 1000 mm heated length 1350 mm tube length under air atmosphere 1600 mm tube length under protective gas atmosphere 125 mm max. Tube outer diameter 430x1265x575 mm (HxWxD) Outer dimensions of the furnace including control unit Digital PID controller (see details in separate item) 220x655x480 mm (HxWxD) Outer dimensions of the control unit 855 mm Length homogeneous zone +/-5°C at 1100°C 3,81 kW max. power type N Thermocouple 120 kg Weight Connection: 400 V, 3 phases, earth + neutral, 50 Hz, 3,81 kW The picture shows an item of the same type. Size and equipment may differ from this type. The furnace body is supplied with a separate control unit. For horizontal operation, the furnace body can be placed directly on a table. Between the kiln body and the control unit there is a 2 m long connecting cable, which can easily be unplugged at the back of the control unit. (with setpoint adjustment) CC-T1 programme controller and data recorder with USB and Ethernet - Single zone control - 4.3” touch screen - 10 programmes - 24 segments per programme (e.g. 12 ramps and 12 hold times) - Max. 2 control tracks (e.g. for optional solenoid valves) - USB connection at the front of the control box - Ethernet connection at the rear of the control box - Data recording in csv format (comma-separated variables) on customer USB stick - Real-time clock with calendar - Date and time for programme start programmable - Programme status display - Output level display of the heaters - Language selection: English, German, French, Italian, Spanish, Chinese - Password protected user levels: 1. Operator can set temperature setpoints / run pre-saved programmes / start data logging 2. Supervisor can additionally change and create programmes / acknowledge alarms 3. The administrator can additionally change language settings, time and date / change data logging presets / change calibration settings and communication settings To operate the furnace, be sure to order one of the packages - Air Package IAP 75x86x1350mm - Protective Gas Package IAP 75x86x1600mm - Vacuum Package (on request) Optional Overtemperature Protection Digital (00053325) TF3 12/125/1000 CC-T1 Touchscreen Controller (3 Zones) Medium 3-zone tube

Product safety information

Manufacturer information:

Carbolite-Gero

, ,
