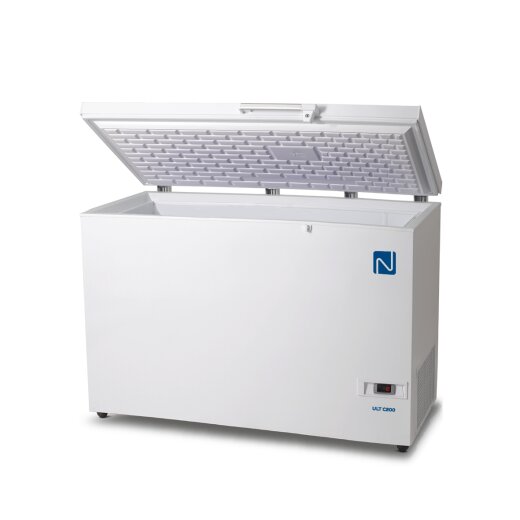

This compact ultra-low temperature chest freezer with 189 L net volume is designed for secure long-term storage of sensitive samples at temperatures down to -86 °C. It is suitable for laboratories, clinics and research facilities with medium sample volumes.
Applications
-
Long-term storage of samples, reagents and reference materials
-
Ultra-low temperature applications in medical and industrial labs
-
Central or backup ULT unit for small biobanks
Key Features
-
Temperature range from -60 °C to -86 °C
-
198 L gross / 189 L net volume – compact footprint with solid capacity
-
80 mm PUR insulation with cyclopentane for low energy loss
-
Eco-friendly, HCFC-free “Nature R” refrigerant
-
Low noise level of 55 dB for quiet lab environments
Convenience & Safety
-
Audible and visual alarm plus high/low temperature alarm
-
Integrated lock to secure valuable samples
-
Manual defrost for reliable operation
-
48-hour battery backup for alarm functions during power cuts
-
XR30CX digital controller with clear temperature display
-
Prepared for external logging equipment and remote alarm connection
-
Access port Ø12 mm for external probes or emergency cooling
-
Mounted on castors for easy movement in the lab
Design & Dimensions
-
Inner liner made of precoated white steel, outer cabinet of galvanized, precoated steel
-
External dimensions (H×W×D incl. condenser & handle): approx. 885 × 923 × 680 mm
-
Internal dimensions (H×W×D): approx. 635/385 × 755/550 × 440 mm
-
80 mm insulation, internal humidity < 5 %
-
Net weight about 69 kg
Energy & Operation
-
Power consumption approx. 5.3 kWh/24 h, 1,935 kWh/year at 230 V / 50 Hz
-
PT1000 temperature probe for accurate monitoring
Storage Capacity (Example configuration)
-
Up to 117 boxes with 50 mm height
-
Up to 84 boxes with 75 mm height
-
Up to 54 boxes with 100 mm height
Product safety information
Manufacturer information:
Labstellar
, ,
| Item information |
Value |
| Total height (mm): |
885 |
| Total width (mm): |
923 |
| Total depth (mm): |
680 |
| Height inside (mm): |
635/385 |
| Width inside (mm): |
755/550 |
| Volume (L): |
189 |
| Depth inside (mm): |
440 |
| Temperature up to (°C): |
-86 |
