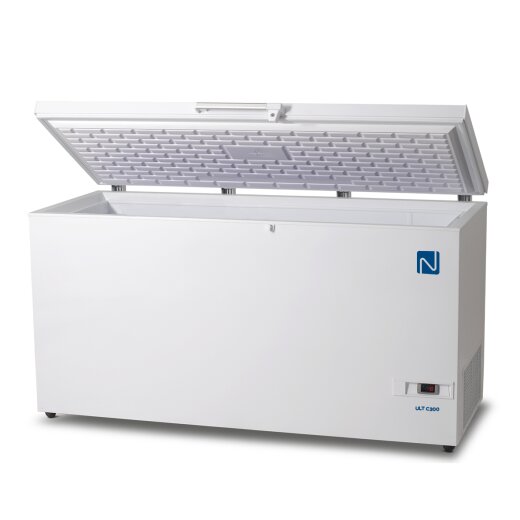

This ultra-low temperature chest freezer with 284 L net volume is designed for secure long-term storage of samples at temperatures down to -86 °C. It combines high storage capacity with efficient insulation and easy installation on castors.
Applications
-
Long-term storage of samples, reagents and reference materials
-
Central ULT unit in laboratories, hospitals and biobanks
-
Suitable for research, pharmaceutical and industrial quality control environments
Key Features
-
Temperature range from -60 °C to -86 °C
-
296 L gross / 284 L net volume
-
80 mm PUR insulation with cyclopentane for reduced cold loss
-
Eco-friendly, HCFC-free Nature R refrigerant
-
Low noise level of 55 dB
-
Manufactured under ISO 9001, 14001 & 45001 certified quality standards
Convenience & Safety
-
Audible and visual alarm
-
High/low temperature alarm
-
Integrated lock for secure sample storage
-
Manual defrost
-
48-hour battery backup for alarms during power failure
-
XR30CX digital controller with clear temperature display
-
Ø 12 mm access port for external probes or CO₂ backup cooling
-
Prepared for external logging equipment and remote alarm connection
Design & Dimensions
-
Inner liner made of precoated white steel
-
Outer cabinet of galvanized, precoated steel
-
External dimensions (H × W × D incl. handle): 885 × 1265 × 680 mm
-
Internal dimensions (H × W × D): 635/385 × 1100/890 × 440 mm
-
Internal humidity < 5 %, net weight 76 kg
Energy & Operation
-
Power consumption approx. 8 kWh/24 h, 2,920 kWh/year (230 V, 50 Hz)
-
PT1000 temperature probe for accurate monitoring
Storage Capacity (Example configuration)
-
Up to 216 boxes with 50 mm height
-
Up to 156 boxes with 75 mm height
-
Up to 99 boxes with 100 mm height
Product safety information
Manufacturer information:
Labstellar
, ,
| Item information |
Value |
| Total height (mm): |
885 |
| Total width (mm): |
1265 |
| Total depth (mm): |
680 |
| Height inside (mm): |
635/385 |
| Width inside (mm): |
1100/890 |
| Volume (L): |
284 |
| Depth inside (mm): |
440 |
| Temperature up to (°C): |
-86 |
| Shipping weight: |
81,00 kg
|
| Item weight: |
76,00 kg
|
